Product Details
＋

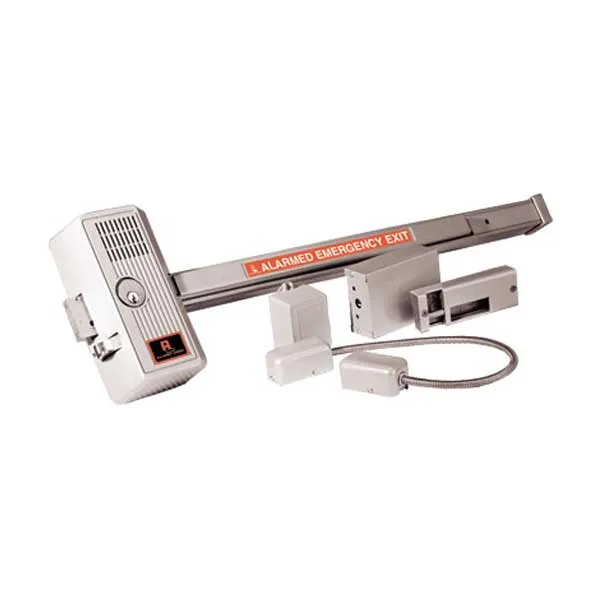

Alarm Lock’s Sirenlock model 715 is a UL listed panic alarm deadbolt device which restricts unauthorized use of exit doors, delaying egress while sounding an alarm. Provides instant egress in emergencies per life safety code.
Features:
- Offers stylish, cost-effective control of unauthorized use of exit doors
- 15 second delayed egress with instant 95db Dual Piezo alarm (meets UL specifications)
- Instant alarmed exit in case of actual emergency or fire (meets NFPA 1012 Life Safety Code)
- Easy-to-install, surface mount unit in a standard panic bar deadbolt/deadlatch design
- Monitoring output for simultaneous use of CCTV camera, secondary siren, remote monitoring console, etc.
- Smoke detector input can be used to power existing system or standalone smoke detector(s) (Includes armored door cord and cables for wiring)
- 9V battery back-up powers in event of power failure
Specifications:
| Function: | Push Bar |
| Material | Extruded aluminum channel with activation bar |
| Power: | 12Vac, 20VA Transformer; 9Vdc Alkaline Battery (Alarm Standby) |
| Current: | 775mA max.; Alarm Circuit, Battery Only (Ac Failure): Standby, 20µA typ.; Alarm, 75mA typ |
| Standby: | 1 year typ. |
| Battery Life: | 200 alarm sequences typ. or constant alarm for 7 hours typ |
| Deadbolt: | Full 1” throw deadbolt with rotating steel inserts |
| Strike: | Single Door Strike |
| Latch Release Time: | 13-15 seconds |
| Auto Alarm Shutdown: | 2 minutes typ |
| Sound pressure Level: | 95dB measured at 10 ft. |
| Mounting Height: | Center of unit should be approximately 38” from the floor |
| Operating Temp: | 20 to 135°F (-7 to 57°C) |
| Finish: | US28 Aluminum |
| Dimensions: | Lock: 8½” x 33” x 3¼” Control Box: 5” x 3½” x 2 |
| Certifications: | Meets NFPA101 Life Safety Code |
